How to Wire a Bathroom Fan Heater

Bathroom fan heaters offer a practical and efficient way to combat humidity and keep your bathroom warm and comfortable. These units combine the functionality of a bathroom fan with the heating capabilities of an electric heater. While installation may seem daunting, wiring a bathroom fan heater is a relatively straightforward process that most homeowners can tackle with the right tools and knowledge.

Before embarking on this project, it is crucial to prioritize safety. Always disconnect the power supply to the bathroom circuit at the breaker box before working on the wiring. Consult local electrical codes and regulations to ensure compliance with safety standards. Consider hiring a qualified electrician if you are not comfortable with electrical work. This article provides a general guide and should not be interpreted as professional advice.

Understanding the Components

Bathroom fan heaters typically consist of the following components:

Fan Motor: Responsible for ventilation and air circulation.
Heating Element: Generates heat using electricity.
Thermostat: Controls the fan and heater operations based on pre-set temperature settings.
Wiring Terminals: Connect the unit to the electrical supply.
Switch: Controls the power to the fan heater unit.

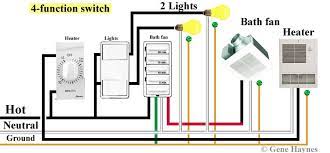

The wiring diagram for a bathroom fan heater usually includes the following wires:

Power Supply (Black Wire): Provides power to the unit.
Neutral (White Wire): Returns the unused electrical current to the power source.
Ground (Green or Bare Wire): Provides a safety path for electrical current in case of a fault.
Fan Motor (Blue Wire): Controls the operation of the fan motor.
Heater Element (Red Wire): Activates the heating element.

Wiring Steps

The following steps outline the general procedure for wiring a bathroom fan heater:

Locate the Existing Electrical Box: Identify the electrical box in your bathroom. This box usually houses the wiring for the existing light fixture or any other electrical outlet.
Turn Off Power at the Breaker Box: Disconnect the power supply to the bathroom circuit at the breaker box. Ensure the power is off by testing the circuit with a voltage tester.
Prepare the Wiring: Strip the insulation off the ends of the wires connected to the fan heater using a wire stripper. Ensure the exposed copper wire is clean and free of any insulation residue.
Connect the Wires to the Fan Heater Terminals: Connect the wires to the appropriate terminals on the fan heater unit. Reference the wiring diagram included with the unit to match the wires to their corresponding terminals.
- Power Supply (Black Wire): Connect to the "L" or "Hot" terminal.
- Neutral (White Wire): Connect to the "N" or "Neutral" terminal.
- Ground (Green or Bare Wire): Connect to the "G" or "Ground" terminal.
- Fan Motor (Blue Wire): Connect to the "FAN" or "Motor" terminal.
- Heater Element (Red Wire): Connect to the "HEAT" or "Heater" terminal.
Connect the Wires to the Electrical Box: Connect the wires from the fan heater to the appropriate wires in the electrical box. Ensure the wires are securely connected to the terminal screws.
- Power Supply (Black Wire): Connect to the black wire in the electrical box.
- Neutral (White Wire): Connect to the white wire in the electrical box.
- Ground (Green or Bare Wire): Connect to the bare or green ground wire in the electrical box.
Secure the Fan Heater: Mount the fan heater securely to the wall or ceiling using the provided mounting brackets or screws. Ensure the unit is securely mounted and level.
Turn On Power at the Breaker Box: Once the fan heater is securely wired and mounted, turn the power back on at the breaker box. Test the fan and heater functionalities to ensure everything is working correctly.
Test the Fan and Heater: Turn on the fan heater and test the fan and heater functionalities. Verify that the fan operates smoothly and the heater produces warmth. Ensure all functions are working as expected.

Additional Considerations

When wiring a bathroom fan heater, consider the following additional factors:

GFCI Protection: Install a Ground Fault Circuit Interrupter (GFCI) outlet or breaker for the bathroom circuit. GFCIs are designed to protect against electric shock by detecting imbalances in electrical current.
Switch Placement: Choose a convenient location for the switch. Ensure the switch is accessible and easy to operate.
Ventilation: Confirm that the fan heater includes proper ventilation to prevent overheating and potential hazards. This may involve ensuring adequate airflow around the unit or installing a ventilation system.

Wiring a bathroom fan heater can be a rewarding project. By following the steps outlined in this article, you can enhance your bathroom's comfort and functionality. Remember to prioritize safety and consult with a qualified electrician if you have any doubts or concerns.
